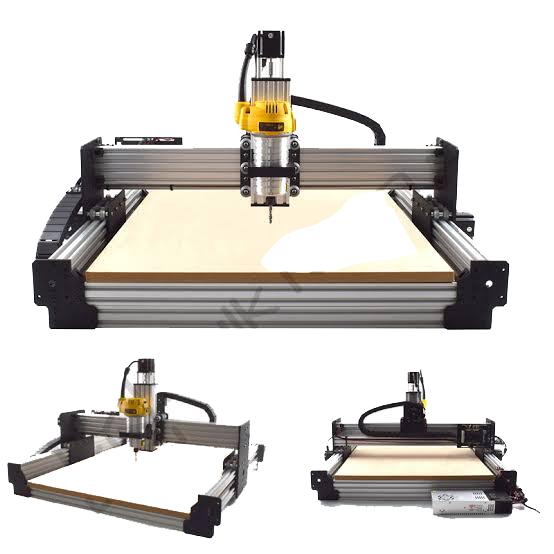

WorkBee CNC Router Machine Full Kit (BulkMan 3D)

This Kits Included

• WorkBee CNC Mechanical Kit
• 4 x Nema 23 High Torque  Stepper Motors
• Mach 3 Controller Bundle
• Cable Drag Chain Bundle
• 1.5kW Air / 2.2kW Water Cooled Spindle Bundle
• All Extrusions are M5 Tapped where necessary

Please note:

• MDF Working Table and Drill Bits are not included with this kit.
• We do not provide technical support for software debugging.
• Mach3 License is not included with this kit. This License can be purchased directly from the official website.

Specs of Nema23( 2.45N.m) Stepper Motor:

• NEMA 23 (High Torque)
• Shaft Size: 1/4″
• Step Angle: 1.8
• Holding Torque: 2.45N.m
• Rated voltage: 3.6 V
• Rated current: 2.8 A

Specs of 1.5 kW Air Cooled Spindle

• Net weight: 2.6kg
• Spindle Spec: φ 65 x 205 mm
• Power: 1.5 kW
• Voltage: 220 ~250 V
• Frequency: 400 Hz
• Speed: 8000-24000 R/min
• Air Cooling
• Run-out off: less than 0.005 mm
• Grease Lubrication
• VFD Inverter 1.5 kW 220 V or 110 V
• Collet: ER11

Specs of 2.2 kW Water Cooled Spindle:

• Net weight: 5.3kg
• Spindle Spec: φ 80 x 215 mm
• Power: 2.2 kW
• Voltage: 220 ~250 V
• Frequency: 400 Hz
• Speed: 0-24000 R/min
• Water Cooling
• Run-out off: less than 0.005 mm
• Grease Lubrication
• VFD Inverter 1.5 kW 220 V or 110 V
• Collet: ER20
  Sizes: 1mm, 2mm, 1/8″, 4mm, 5mm, 6mm, 1/4″, 7mm, 8mm, 9mm, 10mm, 11mm, 1/2″, 13mm

NOTE: Imported product
Custom Duties May Apply
(E&OE)
