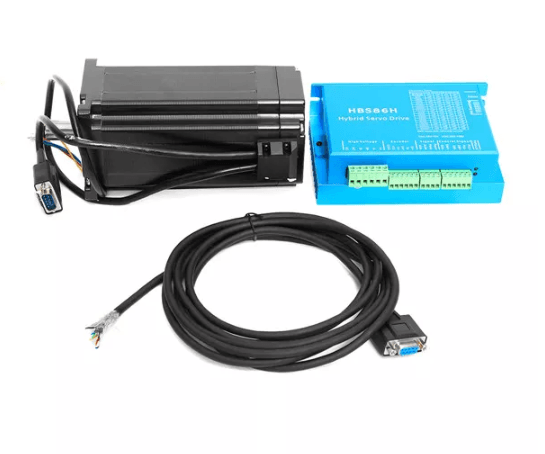

Nema 34 12.5Nm Closed Loop Stepper Motor + HSD86 Driver

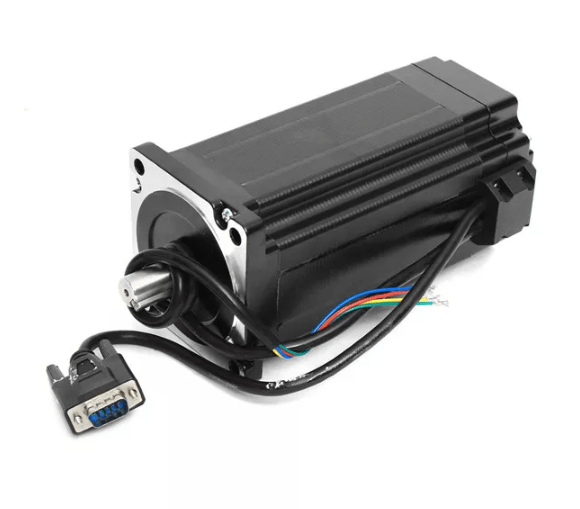

Model: 86HSE12N-B32

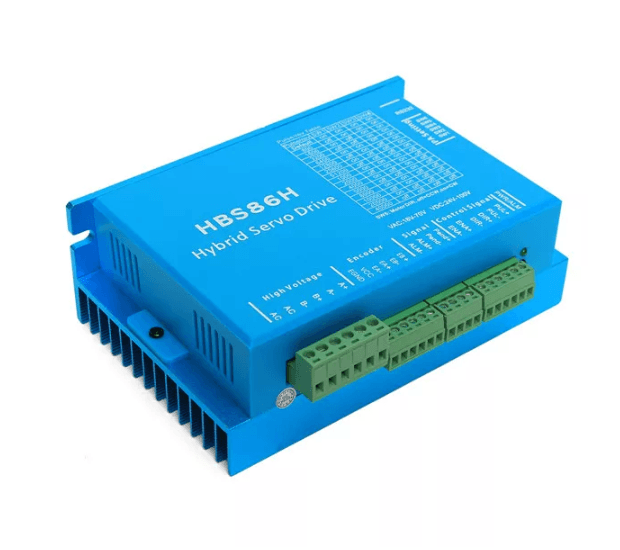

Drive: HSD86
VAC: 18V-70V
VDC: 24V-100V
Current: 6A
Torque: 12.5N.m
Rated Speed: 1000rpm

Encoder Leads
EB+:yellow EB-:green EA+:black EA-:blue VCC: red EGND: white

Wiring
Red:A+ Green:A- Yellow:B+ Blue:B-

DATA SHEET

NOTE: Custom Duties may apply
(E&OE)
