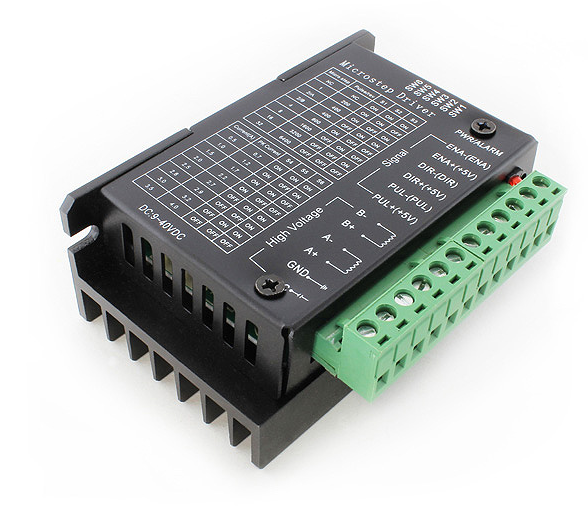

Stepper Motor Driver TB6600 – 4A

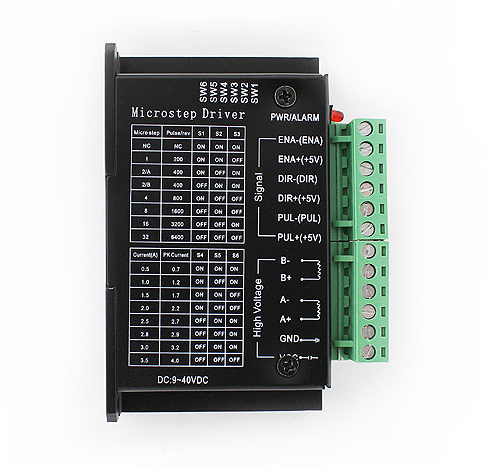

TB6600 is an easy-to-use professional stepper motor driver, which could control a two-phase stepping motor. It is compatible with CNC Breakout Boards and Arduino microcontrollers that can output a 5V digital pulse signal. TB6600 stepper motor driver has a wide range power input, 9~42VDC power supply. And it is able to output 4A peak current, which is enough for the most of stepper motors. The stepper driver supports speed and direction control. You can set its micro step and output current with 6 DIP switch. There are 7 kinds of micro steps (1, 2 / A, 2 / B, 4, 8, 16, 32) and 8 kinds of current control (0.5A, 1A, 1.5A, 2A, 2.5A, 2.8A, 3.0A, 3.5A) in all. And all signal terminals adopt high-speed optocoupler isolation, enhancing its anti-high-frequency interference ability.

• Recommended Power : 24-36V
• Support 8 kinds of current control
• Support 7 kinds of micro steps adjustable
• The interface adopts high-speed opto coupler isolation
• Large area heat sink
• Anti-high-frequency interference ability
• Input anti-reverse protection
• Overheat, over current and short circuit protection
• Output Current:0.5~4.0A
• Power (MAX):160W
• Micro Step: 1, 2/A, 2/B, 4, 8, 16, 32
