Ubiquiti UISP 60GHz/5GHz Wave Long Range Radio | Wave-LR

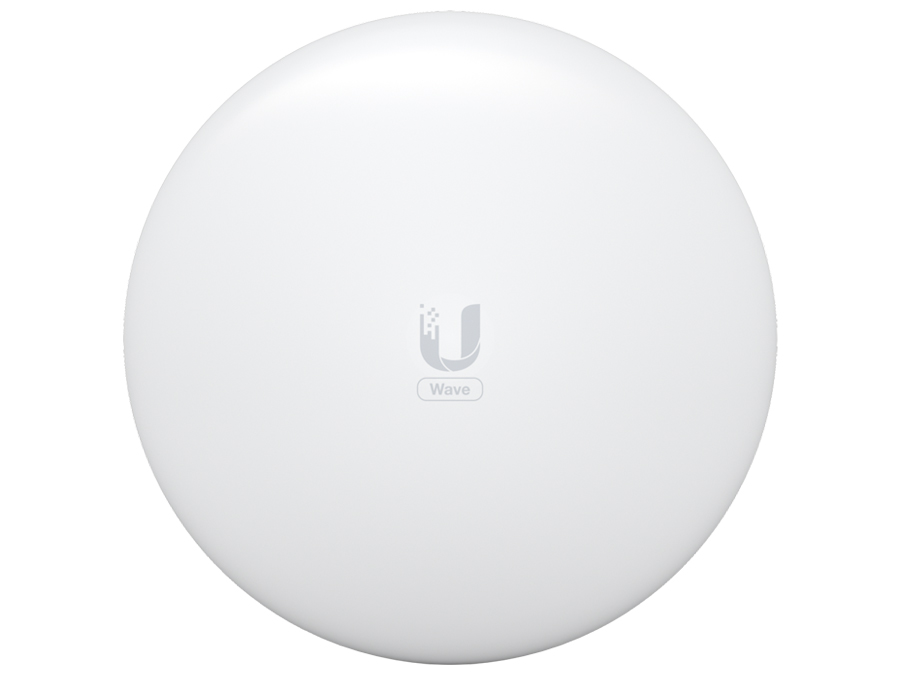

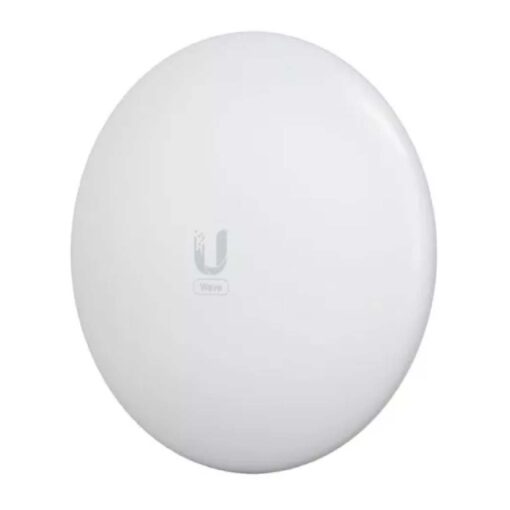

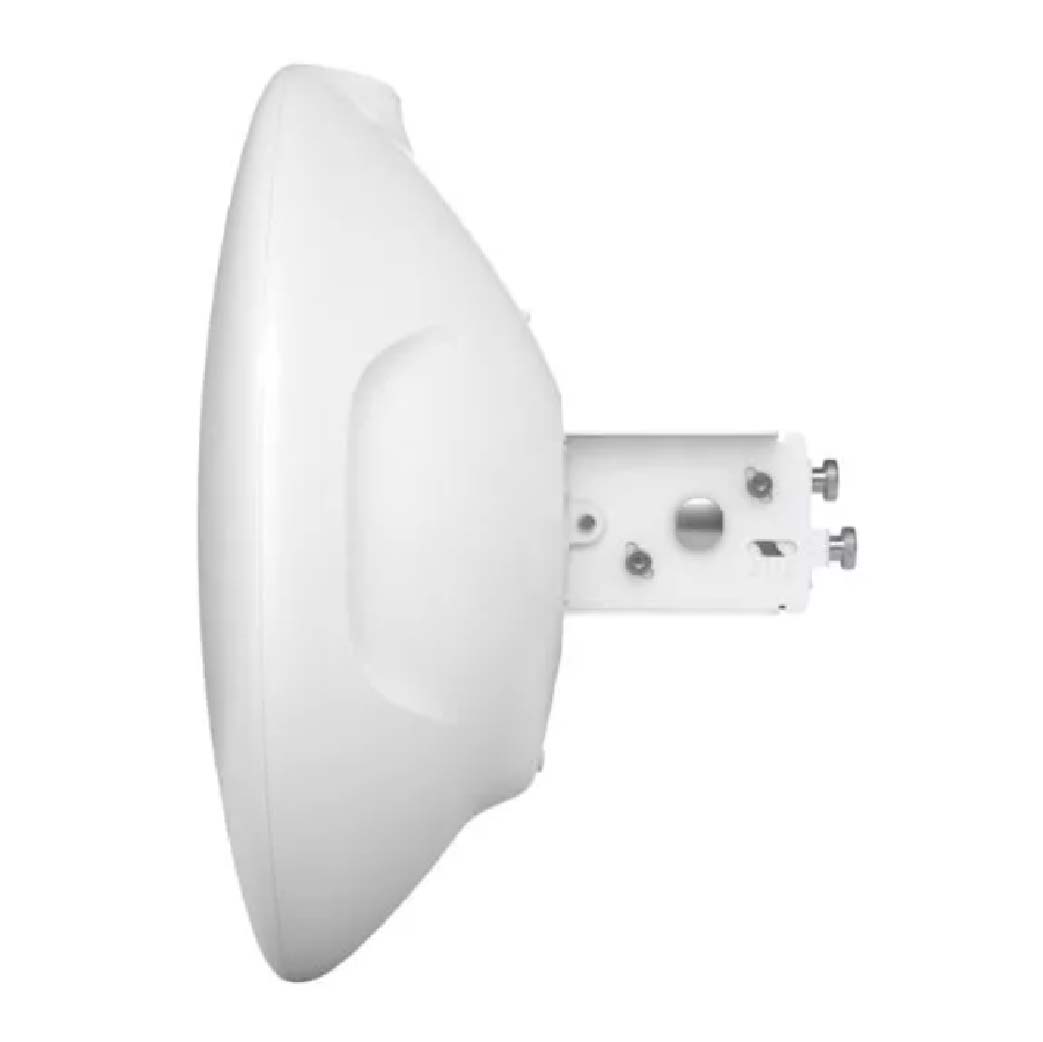

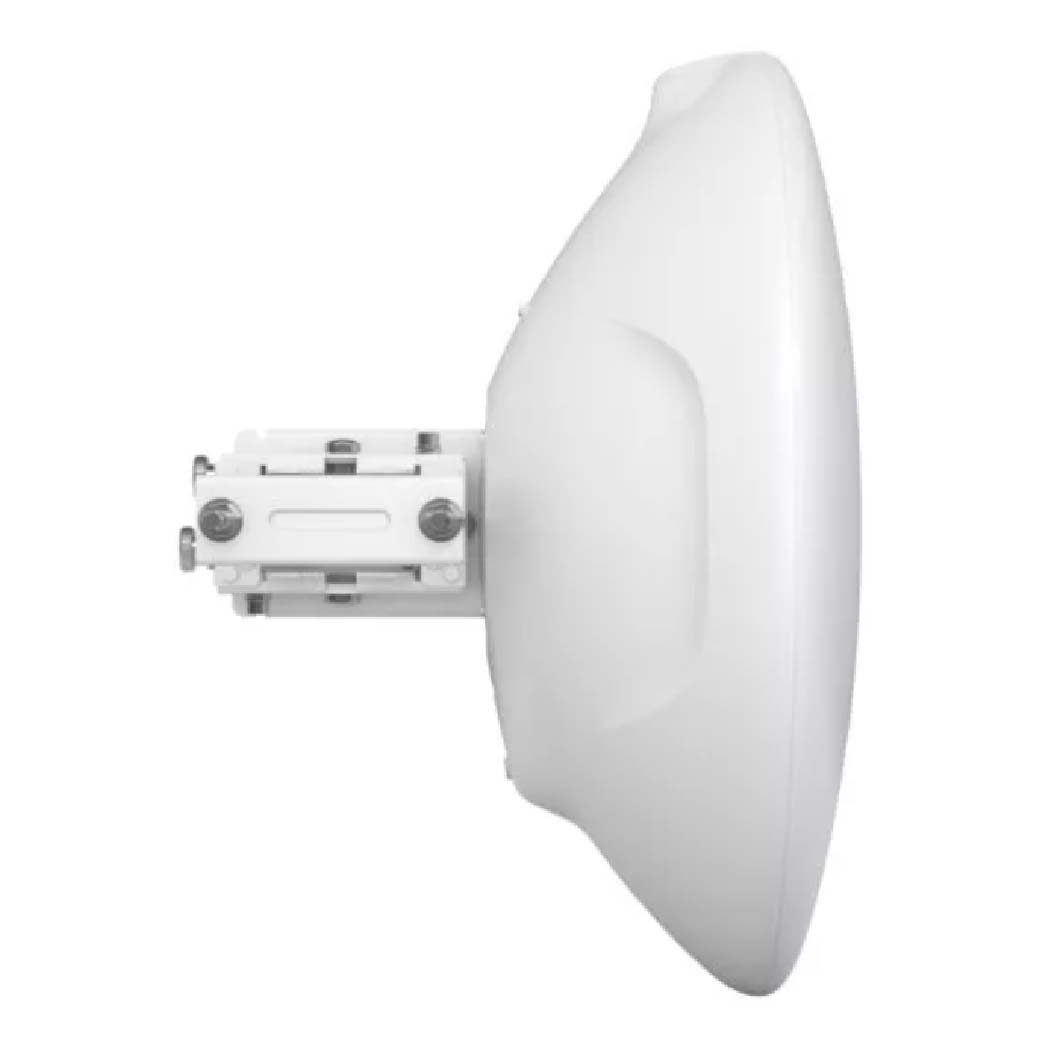

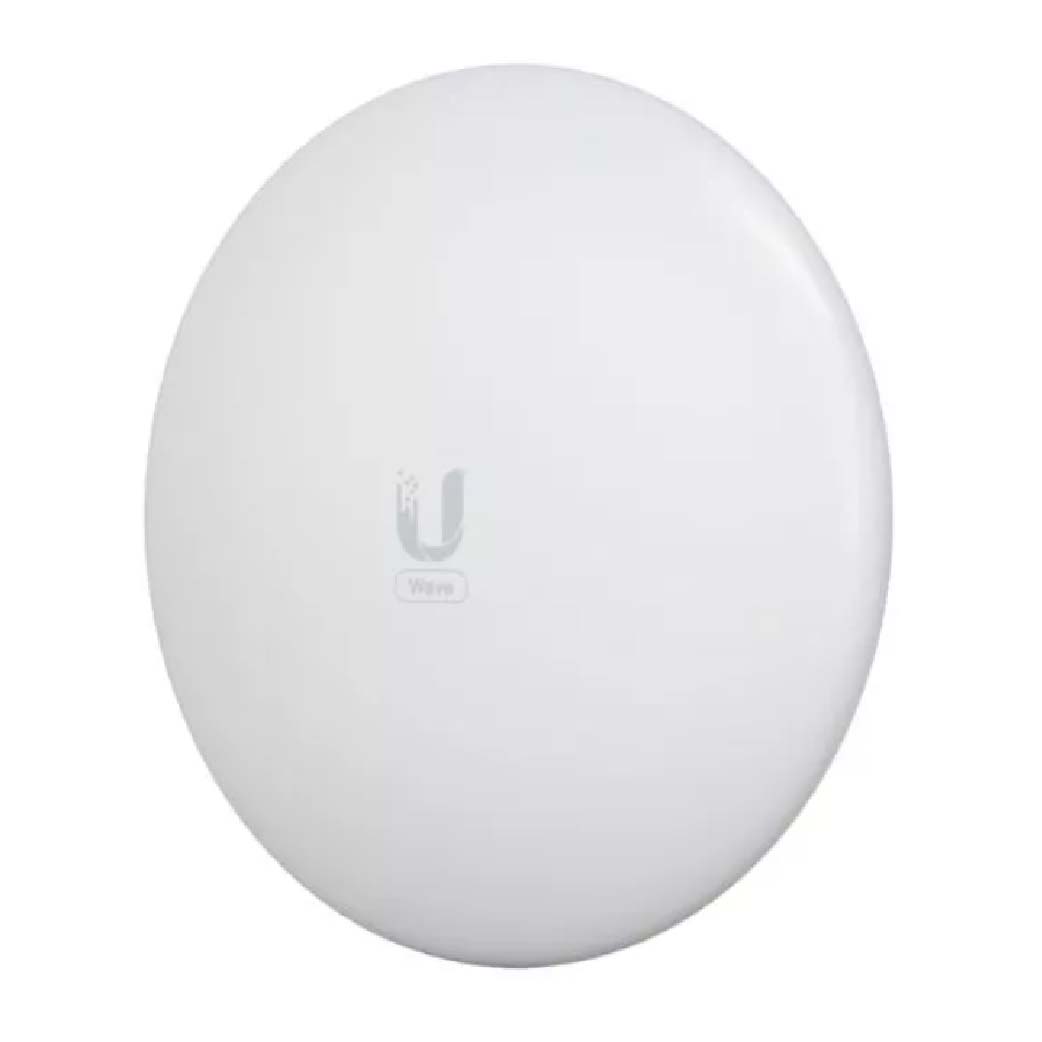

Ubiquiti’s WAVE-LR is a long-range 60GHz radio system with an integrated high-gain antenna, GPS, precision mount bracket, and a 5GHz backup radio. It features Wave technology with true duplex gigabit performance PtP links up to 15 km. In PtMP mode, it can be used as a CPE and paired with the WAVE-AP (up to 8km) or WAVE-APM (6km) with a total throughput of up to 2Gbps.

Also included is a built-in Bluetooth management radio for easy setup via the UISP network management platform. An alignment tool is included with the unit to assist with accurate and reliable aligning of the antennas.

*Note: For PtP links, firmware v.3.2.0 or later is required.

FEATURES

• Antenna Gain: 60GHz: 46dBi ; 5.8GHz: 22dBi
• Beamwidth: 60GHz: 1.1° ; 5GHz: 10°
• Data Rate: 60GHz: Up to 2Gbps ; 5.8GHz: 800Mbps
• Ethernet Ports: 1x 10/100/1000
• Hardware Button: Reset
• Max. Power Consumption: 18W
• Mounting: Pole-Mount
• Operating System: airOS
• Operating Temperature: -40°C to 60°C
• PoE Input: 24V or 48V Passive PoE
• PoE Output: None
• Power Input: 48V 0.65A Gigabit PoE Injector (included)
• Serial Interface: None
• SIM Slots: None
• Supported Voltage Range: 24V or 48V
• USB Ports: None
• Dimensions: Ø424.4 x 166.2mm
• Weight: 2.59kg
