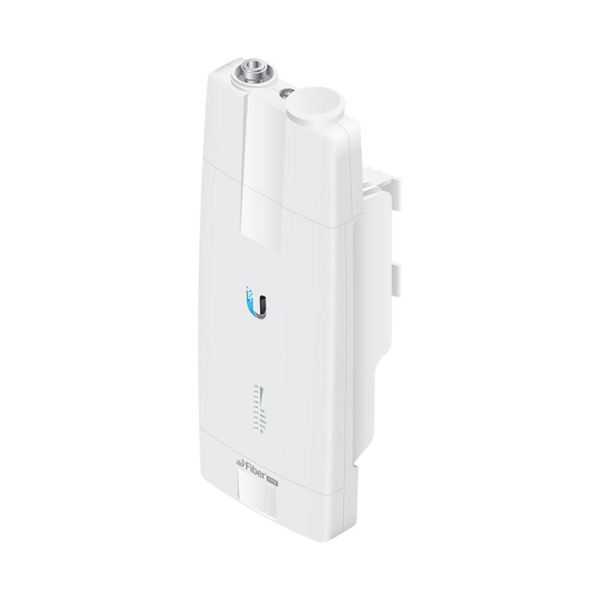

Ubiquiti’s AF-11 radio is built for outdoor Point-to-Point bridging and carrier-class network back-hauls using the 11GHz licensed radio band. Ubiquiti’s custom silicon and proprietary radio architectures are explicitly designed for long-distance and outdoor wireless applications. It offers superior long-range performance and high throughput. The AF-11 can use single (SISO) or bonded (MIMO) channels, depending on your specific license specifications and requirements. It also features different channel widths to suit your deployment needs and allows you to configure TX and RX channel frequencies independently.
*Note: Duplexers and Antenna not included
FEATURES
- Antenna Gain: Antenna Dependent (4x RP SMA Female)
- Beam-width: Antenna Dependent
- Data Rate: 1.2 Gbps
- Ethernet Ports: Data Port – 1x 10/100/1000 ; Management Port – 10/100
- Hardware Button: Reset
- Max. Power Consumption: 36W
- Mounting: Antenna or Pole-Mount
- Operating System: airOS F (airFiber)
- Operating Temperature: -40°C to 55°C
- PoE Input: 38V-56V Passive PoE
- PoE Output: None
- Power Input: 50V, 1.2A PoE Injector (Included) or DC Power Block
- Serial Interface: None
- SIM Slots: None
- Supported Voltage Range: 38V-56V
- USB Ports: None
