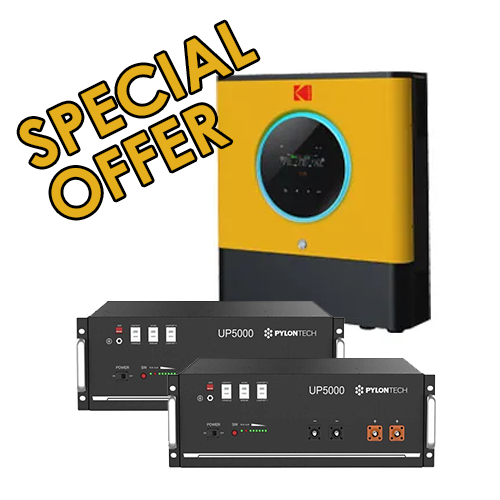

KODAK 10kW Inverter with 2 x Pylontech UP5000 4.8kWh Off-Grid Kit

DESCRIPTION

This part is a special offer made up of the following items:

2 x Pylon UP5000 4.8kWh Li-Ion Solar Battery 48V
1 x KODAK Solar Off-Grid Inverter 10kW 48V

Inverter:

• Customizable status LED ring with RGB lights.
• Touchable buttons with large 5″ colored LCD.
• Built-in Wi-Fi for mobile monitoring (Android/iOS App is available).
• Supports USB On-the-Go function.
• Reserved communication port for BMS (RS485, CAN-BUS or RS232).
• Configurable AC/PV output usage.
• Compatible to Utility Mains or generator input.
• Built-in anti-dust kit.
• Built-in DC output for DC fan, LED bulb, router and so on.
• Parallel operation with 6 units.

Battery:

• Modular design for ease of expansion
• Higher usable capacity resulting in less battery modules installed
• Usable capacity 4 560Wh
• Parallel Capability of up to 16 units
• Allows for large installation of up to 72.96kWh with no LV Hub
• Intelligent BMS protecting battery cells
• 95% DoD with more usable capacity
• RS485 and CAN compatible
• Comes with a 5-year warranty non-extendable

Battery Improvements:

• C-Rating of 0.9C.
• The UP5000 battery can be upgraded to 0.9C rating capabilities through a firmware update.
• Continous charge and discharge current of 90A.



DATASHEET

Email  For Stock Availability.
(E&EO)
