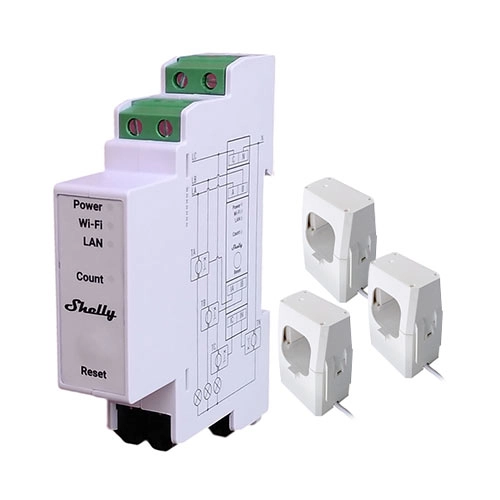

Shelly Pro 3EM-400A DIN-Rail Mountable Single Or Three-Phase Energy Meter With 3-Phase Current Transformers

Shelly Pro 3EM-400 is a DIN rail mountable three-phase energy meter. Enhanced with all the gen2 firmware flexibility and LAN connectivity, it provides professional integrators with additional options for end-customer solutions. It can work standalone in a local LAN and/or Wi-Fi network, or it can also be operated through cloud home automation services through MQTT, HTTP, and WebSocket. All inbound connections support TLS.

The Device reports accumulated energy as well as instantaneous voltage, current, active, and apparent power per phase in real time. It stores data in non-volatile memory that can be retrieved for a period of up to 60 days in 1-minute intervals.

The Device has a real-time clock to keep the correct time if the connection to an SNTP server is lost.

Shelly Pro 3EM can be accessed, set up, and monitored remotely by the User, as well as the Device can access and communicate with an automation system, as long as they are in the same network infrastructure.

The Device has an embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.

Features:
Can measure up to 400 A for each phase and the neutral
4 quadrant measurement with multiple connection types
Accuracy Class B active energy (Compliance with IEC 62053-21 based on manufacturer testing)
Photovoltaic ready
Phase sequence error detection (option)
Optical pulse indication of energy usage
Measurement accuracy tо 1%
Stores data in non-volatile memory that can be retrieved for a period of up to 60 days in 1-minute intervals
Package includes 3 pieces of 400 A Current Transformers

Benefits:
Connectivity via Wi-Fi, Ethernet or Bluetooth
Internal temperature sensing and reporting
The Device has an embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.
