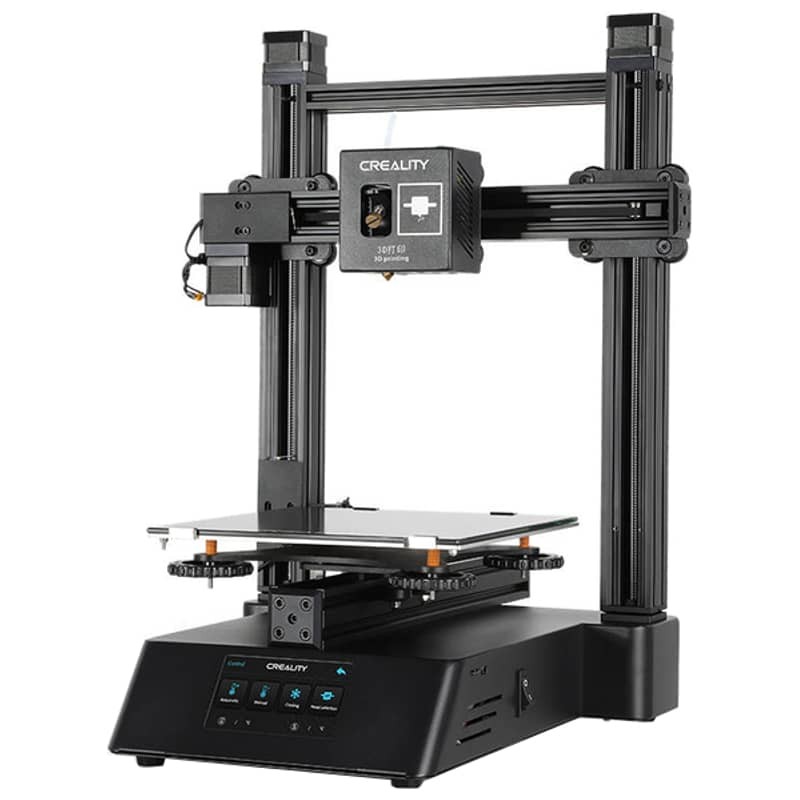

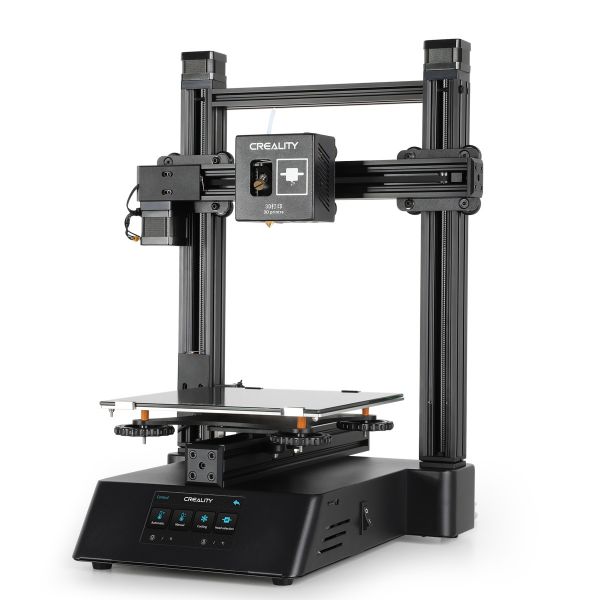

Creality3D CP-01 Modular Printer, (3-in-1) for a complete portable factory
3D printer, laser engraving and CNC cutting – Hot bed up to 100º – Bowden type extruder – 200 x 200 x 200 mm printing area – Filament detector – Automatic resume function – Touch screen – 1.75mm filament compatible – Supports MicroSD card – PLA, ABS, PETG, TPU

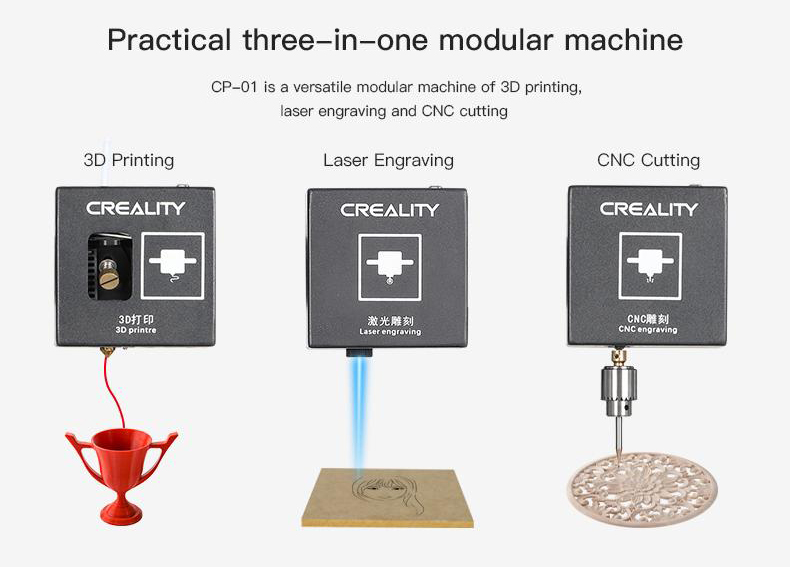

3 operations, only one machine. If you want to get a portable factory, we present you the new Creality3D CP-01 Modular. In one place you’ll have a 3D printer, a laser engraving machine and a CNC cutting machine. Just change a few parts and you’ll have one or the other. All of this with a large area and high performance.
Compatible with a variety of materials
Let’s start by talking about its functionality as a 3D printer. The new CP-01 allows high temperature printing, reaching 100ºC in its hot bed and 280ºC in its nozzle. What is this for? You will be able to print with more types of materials than other printers, supporting PLA, ABS and TPU, among many others. With its 200x200x200 mm printing area, you will have plenty of space in which to print all the layers of your figures. In addition, its industrial-grade aluminium frame offers stable operation and gives you great filament precision.
Laser engraving and cutting machine
In laser engraving mode, the new CP-01 allows you to engrave on materials such as wood, paper, plastic, leather… It offers you precise positioning so that you don’t have any deviation from your ideas, as well as being compatible with laser heads of different powers. In its CNC cutting machine mode, it will generate models with a high degree of smooth finishing, being able to cut the PCB without any deviations. All these heads have uniform standards for universal use and reduce the assembly time without damaging the printing efficiency. It will allow you to replace each of the heads in less than 30 seconds, with its three fixing screws.
Precise like few others
In addition, the new CP-01 has adopted a full belt drive, which is more stable than the threaded rod guide rail and thereby obtains higher quality models. It also uses a V-guide rail and pulley to have a stable and smooth operation. It will offer a low noise level, wear resistance and a long lifespan. Don’t worry about power outages thanks its power supply protection device and printing resume function. It will continue to run orders after restarting without affecting the final models.
Powerful motor and self-levelling
Finally, the new CP-01 modular printer adopts a 42 stepper motor that will ensure performance and operation on which you can rely. All of this comes with a clean look, with its hidden threaded rod; machine limit switch that gives you zero deviation; a new user interface for more intuitive use; and an easy leveling nut for you to conveniently level the print area in a few seconds.
Technical specifications Printer Creality3D CP-01 Modular 3 in 1 Printer – 3D Printer – Laser – CNC:
- Features:
- Brand: Creality3D
- Type: DIY
- Model: CP-01 Modular
- 3D printing technology: FDM
- Motor: 42-40 stepper, 42-34 threaded rod motor, 1.8º step angle
- Platform:
- Hot bed: Yes
- Hot bed temperature: up to 100ºC
- Size of the printing bed: 200 x 200 x 200 mm
- Aluminum thermal base
- CNC milling
- Carving / cutting size: 200 x 200 mm
- Materials: wood, paper, PCB, plastic, etc.
- File format: jpg, jpeg
- Spindle speed: 4,800 rpm max.
- Chuck clamping range: 0-4mm
- Standard gutter size: tungsten alloy cutter
- Range: 0-4 mm
- Laser engraving:
- Engraving size: 200 x 200 mm
- Materials: wood, paper, plastic, etc
- File format: JPG, JPEG
- Laser power: less than 0.5W
- Extruder:
- Number of extruders: 1
- Bowden-type extruder
- Fuser:
- Melting temperature: 0-250º
- Layer thickness: 0.1-0.4mm
- Nozzle Diameter: 0.4mm (can be substituted for other sizes)
- Printing precision: ± 0.1 mm
- Printing speed: 10-80mm / s
- Compatible with 1.75mm diameter filament
- 4.3 “touch screen
- Connectivity:
- MicroSD
- Online connection
- Functions:
- Self-leveling
- Filament detector
- Automatic resume function
- New user interface
- Limit switch
- V-guide rail
- Full belt drive
- Replacement of modular heads in less than 30 seconds
- Printing materials:
- PLA
- ABS
- TPU
- PVA
- Language: English, Chinese
- Compatible operating systems: Windows XP / Vista / 7/10, MAC and Linux
- Accepted formats: STL, OBZH, AMG
- Cutting software: Cura, Simplify3D
- Power:
- Input 115-230V
- Output: 24V
- Features:
- Structure material: aluminum frame
- Colour: Black
- Printer weight: 10 kg
- Package weight: 11 kg
(E&OE)
