Sale!

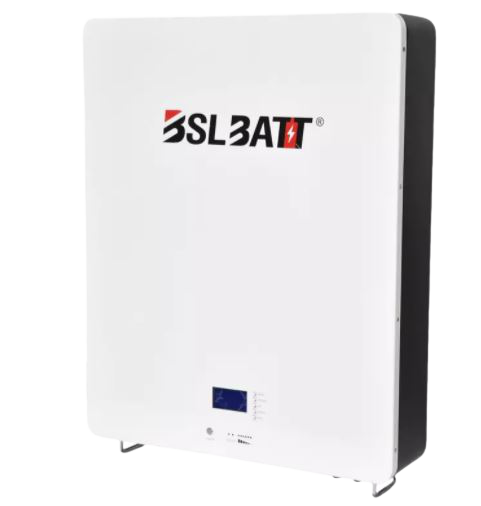

BSL Battery Powerwall LiFePO48 10.2kW (200Ah)
Original price was: R47,250.00.R37,750.00Current price is: R37,750.00.
Out of stock

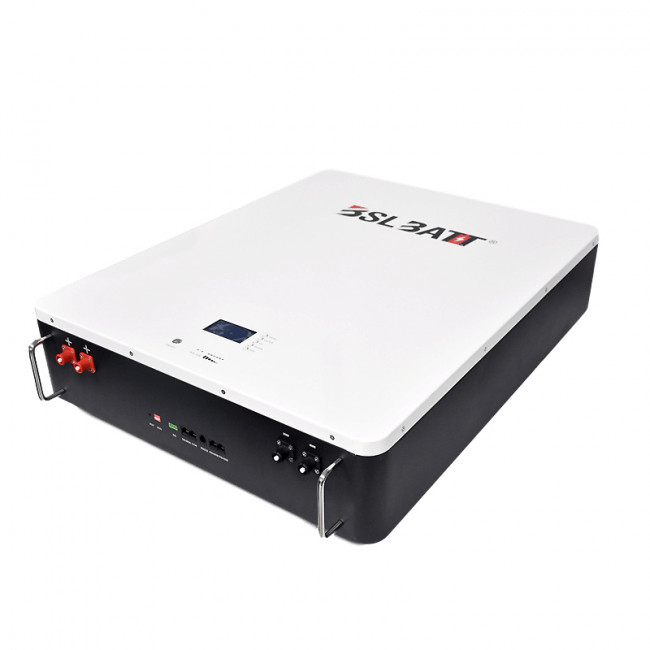

TheĀ BSLBATT Lithium Battery is a 10.2 kWh 48V Lithium Iron Phosphate (LFP) Battery with a built-in battery management system and an LCD screen that integrates and displays multilevel safety features for excellent performance. The BSLBATT Lithium Battery is maintenance-free and easy to integrate with solar or for independent operation to deliver power to your home day or night. Designed for backup power, off-grid, time of use, and self-use applications, the BSLBATT is consistently reliable and will keep your solar system operating during a power outage, or will use the energy stored from the daytime to power your home at night.
Highlights
- Non-Toxic & Non-Hazardous Cobalt-Free LFP Chemistry
- No Thermal Runaway with Fire Propagation
- No Heat Generation, Mitigation, Thermal Monitoring or Toxic Cooling
- Extended Operating Temperature -4 to 140F
- 98% Efficiency Rate
- Fast Charge & Discharge Rates
- 10,000 Cycle Life with a 10 Year Warranty
- Cycle One to Several Times Per Day
- Seamless Integration with All Industry Standard Inverter/Charge Controllers
- Built-In Safety ā BMS with Breaker On/Off Switch for Shipping & Installation
- Modular, Scalable & Proven Performance
Specification
| Model | BSLBATT LFP-48V Battery PACK | |
| Electrical Characteristics | Nominal Voltage | 48V(15series) |
| Nominal Capacity | 50Ah/100Ah/150Ah/200Ah | |
| Energy | 2400Wh/4800Wh/7200Wh/9600Wh | |
| Internal Resistance | ā¤60mĪ© | |
| Cycle Life | ā„6000 cycles @ 80% DOD, 25ā, 0.5C ā„5000 cycles @ 80% DOD, 40ā, 0.5C | |
| Design Life | ā„10.5 years | |
| Months Self Discharge | ā¤2%ļ¼@25ā | |
| Effificiency of Charge | ā„98% | |
| Effificiency of Discharge | ā„100% @ 0.2C ā„96% @ 1C | |
|
Charge |
Charge Cut-off Voltage | 54.0VĀ±0.1V |
| Charge Mode | 1C to 54.0V, then 54.0V charge current to Ā 0.02C (CC/CV) | |
| Charge Current | 100A | |
| Max. Charge Current | 130A | |
| Charge Cut-off Voltage | 54VĀ±0.2V(Floating charge voltage) | |
| Discharge | Continuous Current | 100A |
| Max. Continuous Discharge Current | 130A | |
| Discharge Cut-off Voltage | 38VĀ±0.2V | |
| Environmental | Charge Temperature | 0ā~60āĀ (Under 0āĀ extra heating mechanism) |
| Discharge Temperature | -20ā~60āĀ (Under 0āwork with reduced capacity) | |
| Storage Temperature | -40ā~55āĀ @ 60%Ā±25% relative humidity | |
| Water Dust Resistance | Ip21 (The battery cabinet supports Ip55) | |
|
Mechanical |
Method | 15S1P/15S2P/15S3P/15S4P |
| Case | Iron (Insulation painting) | |
| Dimensions | 780 x630 x160(220)mm | |
| Weight | Approx:30kg/48kg/70kg/96kg | |
| Gravimetric Specifific energy | Approx:92Wh/kg | |
| Protocol (optional) | RS232-PC RS485(B)-PC RS485(A)-Inverter CANBUS-Inverter | |
| Other | SOC Light | 6 x LED |
| Display Screen | LCD(Optional) | |
| Limit charge current | 20A | |
Email for stock availability
(E&OE)
| Weight | 67.5 kg |
|---|---|
| Dimensions | 169 × 135 × 34 cm |
| Watts | 5.1kWh, 6.4kWh |
