Sale!

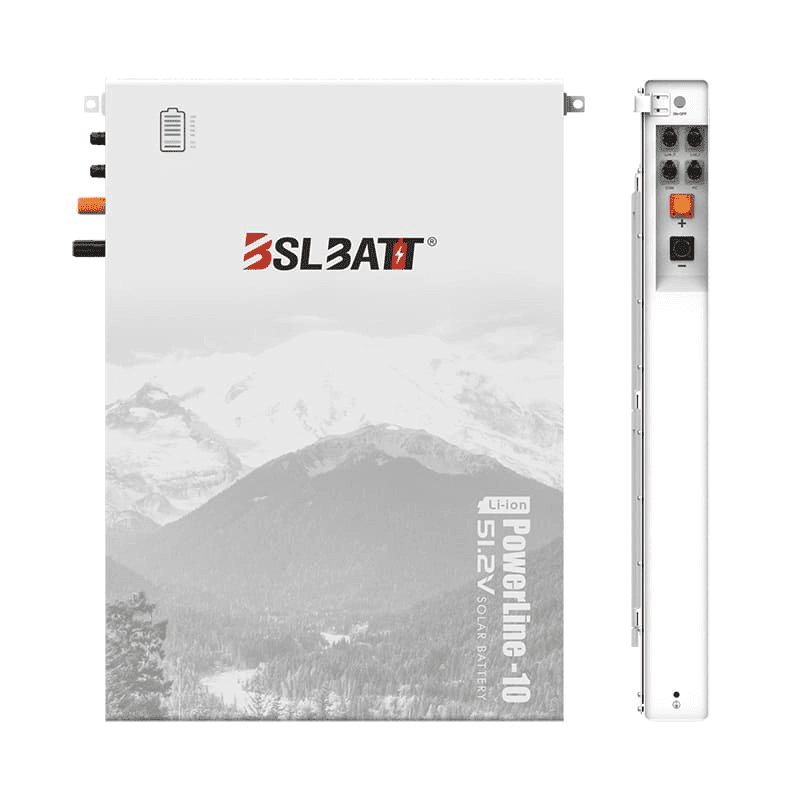

BSL Battery 51.2V – Powerline 200Ah (10.24 KWh) Wall Mount
Original price was: R43,470.00.R37,750.00Current price is: R37,750.00.
PowerLine-10 is an ultra-thin wall-mounted battery that can be installed directly on the wall through a simple installation method quick installation. Exquisite designed, compact size can fit into any small space in the home. We use industry-leading LiFePO4 technology to cycle more than 6000 times @ 90% DOD
Features
- Modular and scalable
- Max. 1C charge/ discharge
- 6000 Cycle Life @90% DOD
- 10-year warranty & technical support
- For on-grid and off-grid
- UL standard battery pack
- Compatible with multiple inverters
- Safe and reliable LiFePO4
| Battery Type | LiFePO4 | ||
| Nominal Voltage (V) | 51.2 | ||
| Nominal Capacity (Wh) | 10240 | ||
| Usable Capacity (Wh) | 9216 | ||
| Cell ＆ Method | 16S2P | ||
| Dimension(mm)(W*H*D) | (980 x 700 x 100）±2mm | ||
| Weight(Kg) | 95 ±2Kg | ||
| Discharge Voltage(V) | 47 | ||
| Charge Voltage(V) | 55 | ||
| Charge | Rate. Current / Power | 100A / 5.12kW | |
| Max. Current / Power | 160A / 8.192kW | ||
| Peak Current/ Power | 210A / 10.752kW | ||
| Discharge | Rate. Current / Power | 200A / 10.24kW | |
| Max. Current / Power | 220A / 11.264kW, 1s | ||
| Peak Current/ Power | 250A / 12.80kW, 1s | ||
| Communication | RS232, RS485, CAN, WIFI(Optional), Bluetooth(Optional) | ||
| Depth Of Discharge(%) | 90% | ||
| Expansion | up to 32 units in parallel | ||
| Working Temperature | Charge | 0~55℃ | |
| Discharge | -20~55℃ | ||
| Storage Temperature | 0~33℃ | ||
| Short Circuit Current/Duration Time | 350A, Delay time 500μs | ||
| Cooling Type | Nature | ||
| Protection Level | IP20 | ||
| Monthly Self-discharge | ≤ 3%/month | ||
| Humidity | ≤ 60% ROH | ||
| Altitude(m) | ＜ 4000 | ||
| Warranty | 10 Years | ||
| Design Life | ＞ 15 Years（25℃ / 77℉） | ||
| Cycle Life | ＞ 6000 cycles, 25℃ | ||
| Certification & Safety Standard | UN38.3 | ||
EMAIL for Stock Availability
(E&OE)
| Weight | 62.1 kg |
|---|---|
| Dimensions | 156 × 125 × 32 cm |
