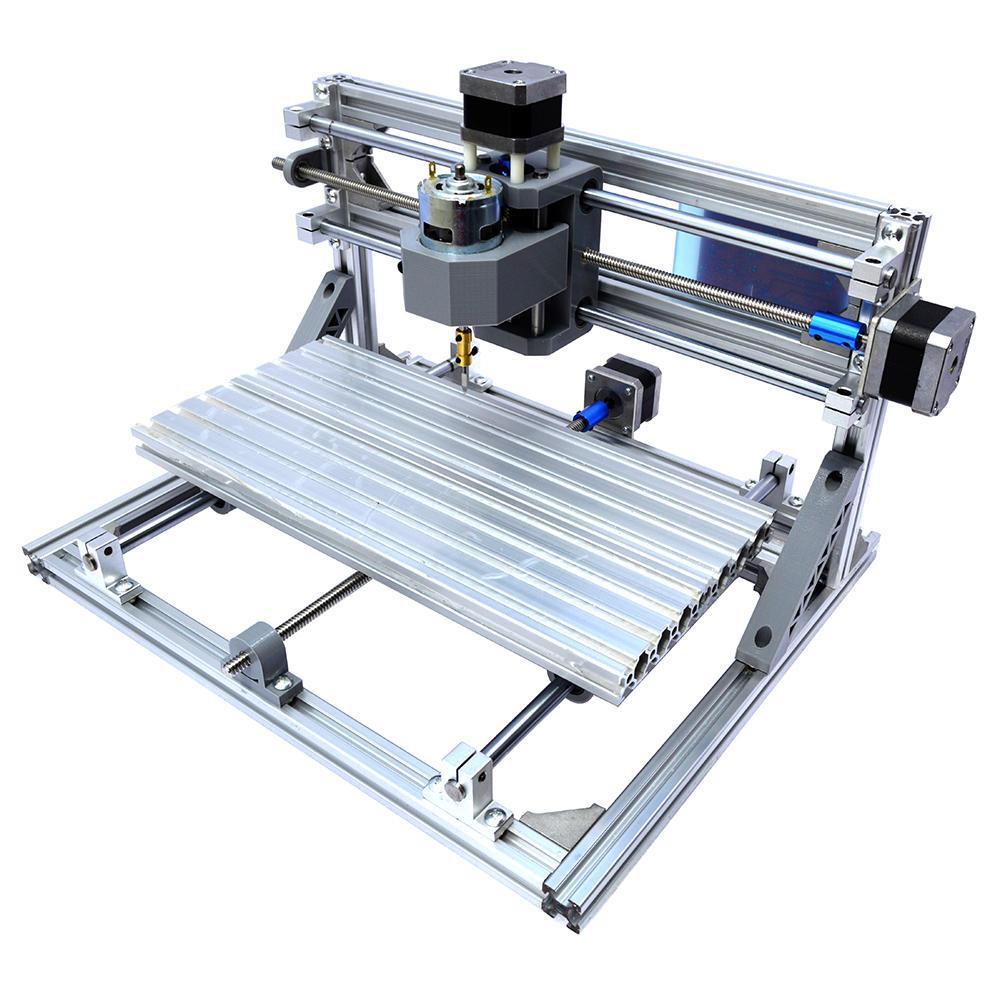

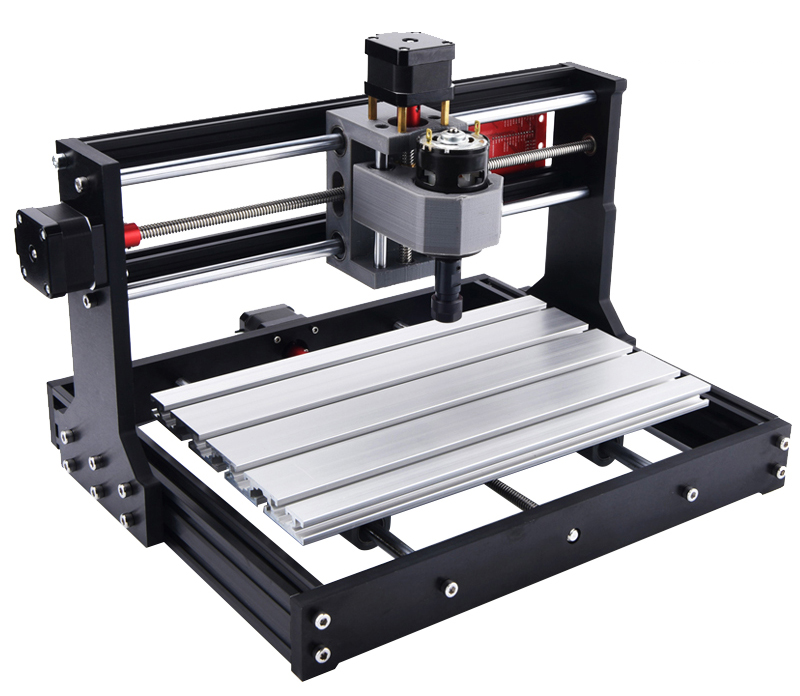

3018 3 Axis DIY CNC Router

Due to the uncertainty of shipping costs only domestic shipping costs are charged.
INTERNATIONAL SHIPPING IS NOT INCLUDED.

EMAIL for an Official Quote

Model: Mini CNC3018 (Without Laser Module)
Frame Material:  Aluminum Alloy
Color: Silver
Table Area: Approx. 340x160mm
Working Area: Approx. 340x160x40mm
Product Weight: 7.5kg
Control Software for Spindle: Grbl Control
System Requirements: Windows XP SP3, Win7, Win8, Win10.
Adapter Plug: 3-Pin AU Plug
Adapter Input Voltage: AC 110-240V 50/60Hz
Adapter Output Voltage: DC 24V 4A

Feature:

1. Aluminum Profile Stable Construction
2. 3 Axis Movable, Powerful Spindle Motor
3. Contains Quickstart Guide of GRBL Software
4. 340x160x40mm Working Area, Meet Most Amateur DIY Needs
5. Engrave Wood, Plastic, Acrylic, PCB, or Similar Material

NOTE: Cannot Engrave Metal, Steel, Aluminum.

Technical Parameters
Working Voltage:  DC 24V
Interface: USB
Stepper Motor:  42 Stepper Motor, Voltage: 12V, Phase Current 1.3A, Torque 0.25N.m
Spindle Motor:  775 Spindle Motor (12-36V) 24V: 7000r/min, 36V: 9000r/min

Delivery: 10 – 20 Business Days (Tracked)

Note: Duty fees may apply

(E&OE)
