Ubiquiti UISP LTU Rocket 5GHz Radio | LTU-Rocket

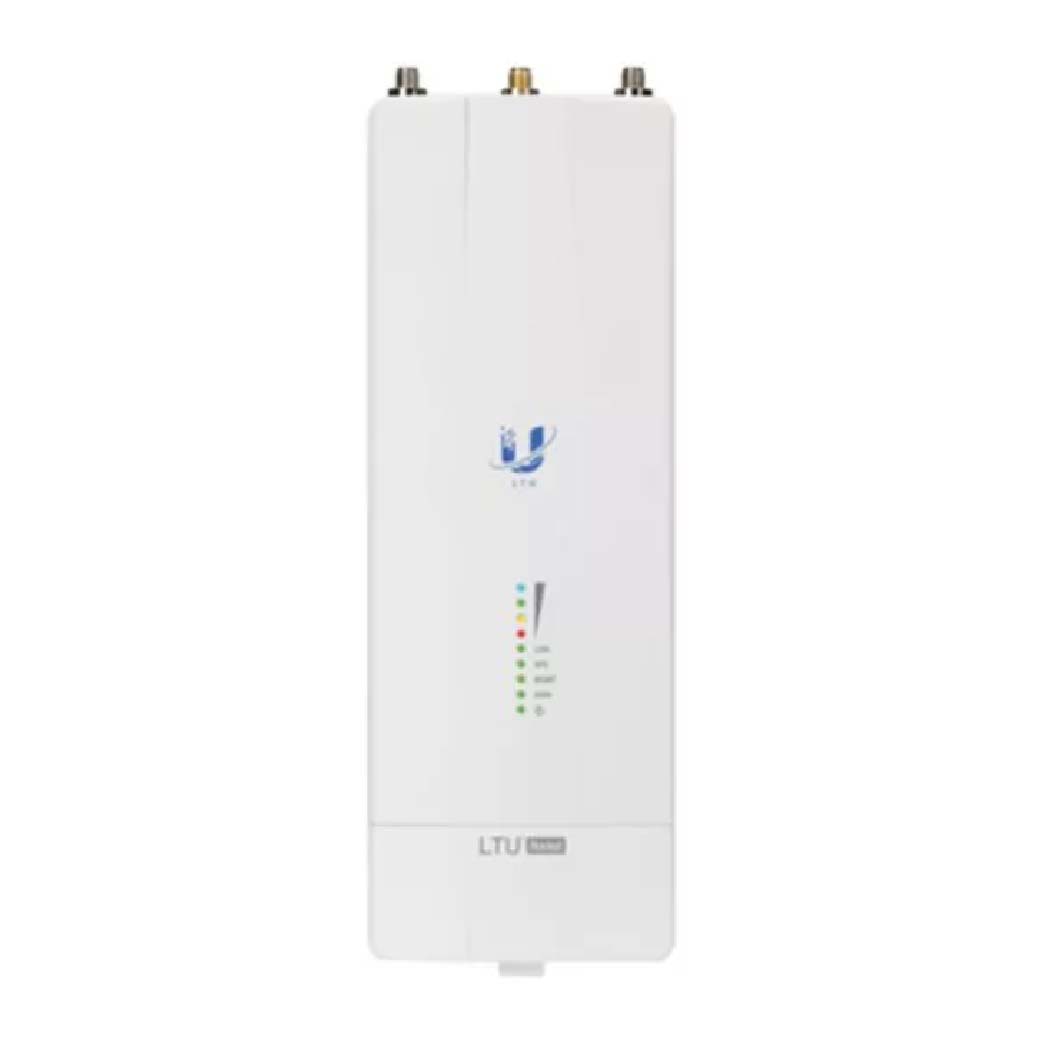

Ubiquiti’s LTU-ROCKET is a connectorised radio featuring proprietary LTU technology. This technology is not impeded by the limitations of standard 802.11 WiFi technology, supporting 1024QAM. and offering Channel Width Flexibility (10/20/30/40/50/60/80/100 MHz ). Its custom LTU silicon and radio architecture provide up to 900+ Mbps of real TCP/IP throughput. It can be managed via the UISP network management platform.

*Note: For maximum throughput firmware version 2.3.0 or later is required.

FEATURES

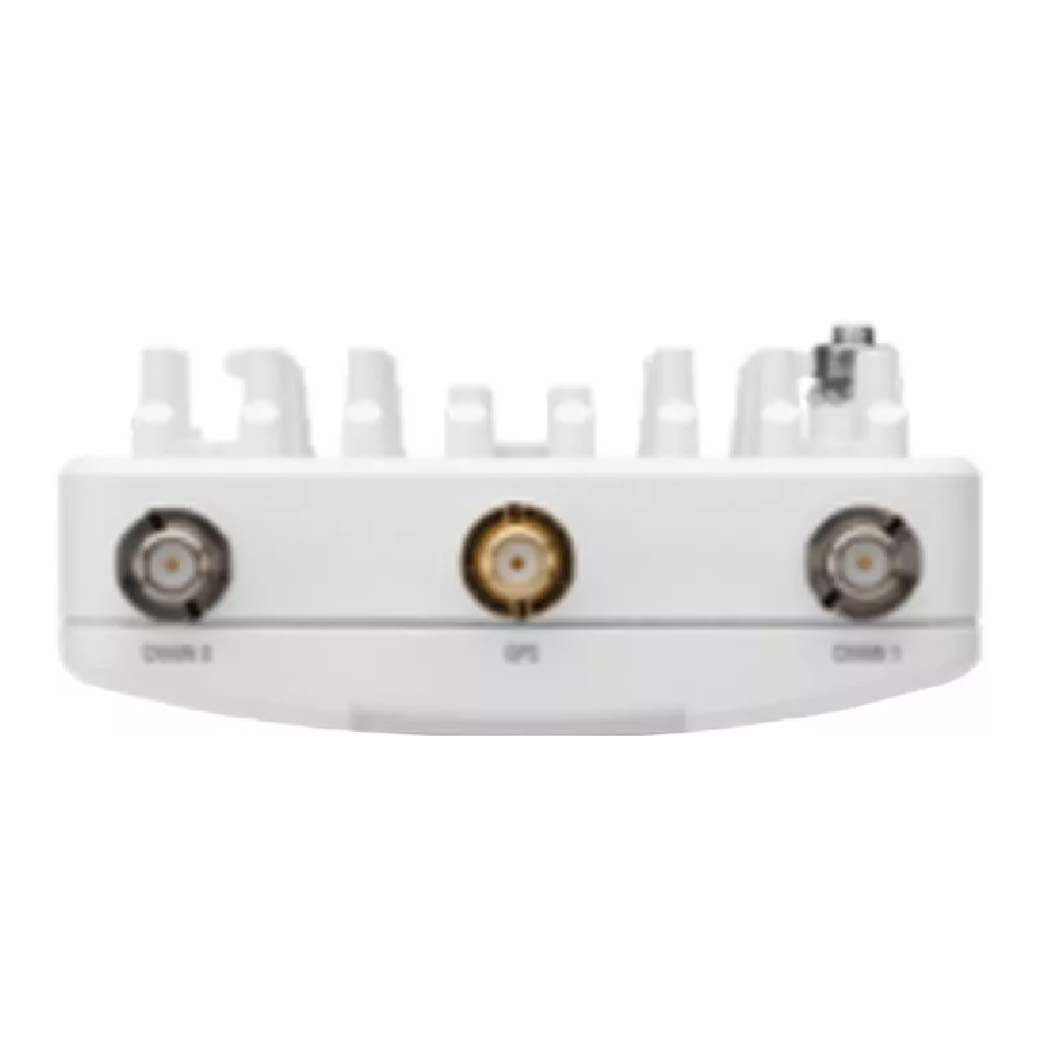

• Antenna Gain: Antenna Dependent (2x RP SMA Female)
• Beam-width: Antenna Dependent
• Data Rate: Up to 600Mbps
• Ethernet Ports: 1x 10/100/1000
• Hardware Button: Reset
• Max. Power Consumption: 25W
• Mounting: Pole-Mount
• Operating System: airOS
• Operating Temperature: -40°C to 55°C
• PoE Input: 24V Passive PoE
• PoE Output: None
• Power Input: 24V 1A Gigabit PoE Injector (Included)
• Serial Interface: None
• SIM Slots: None
• Supported Voltage Range: 24V
• USB Ports: None
• Dimensions: 244 x 82 x 48mm
• Weight: 468g
