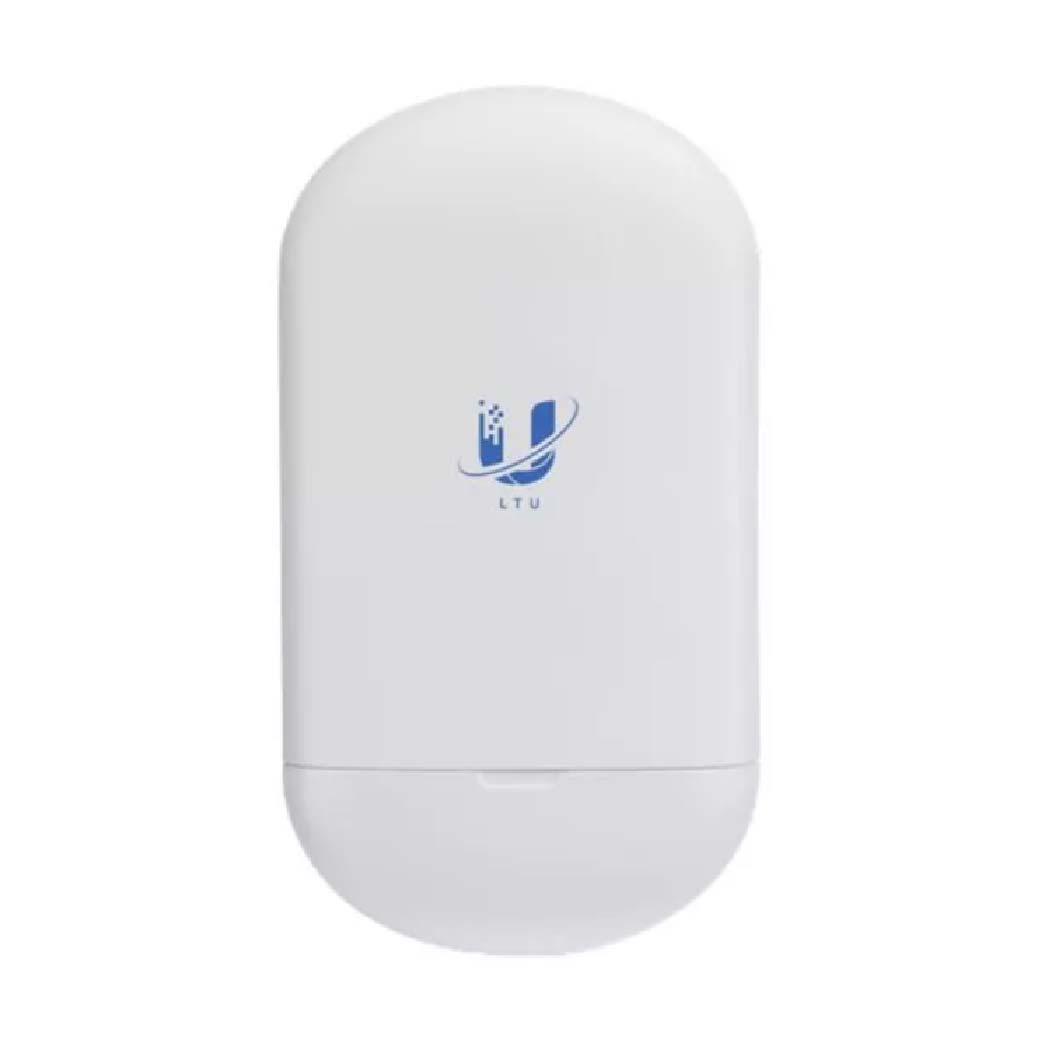

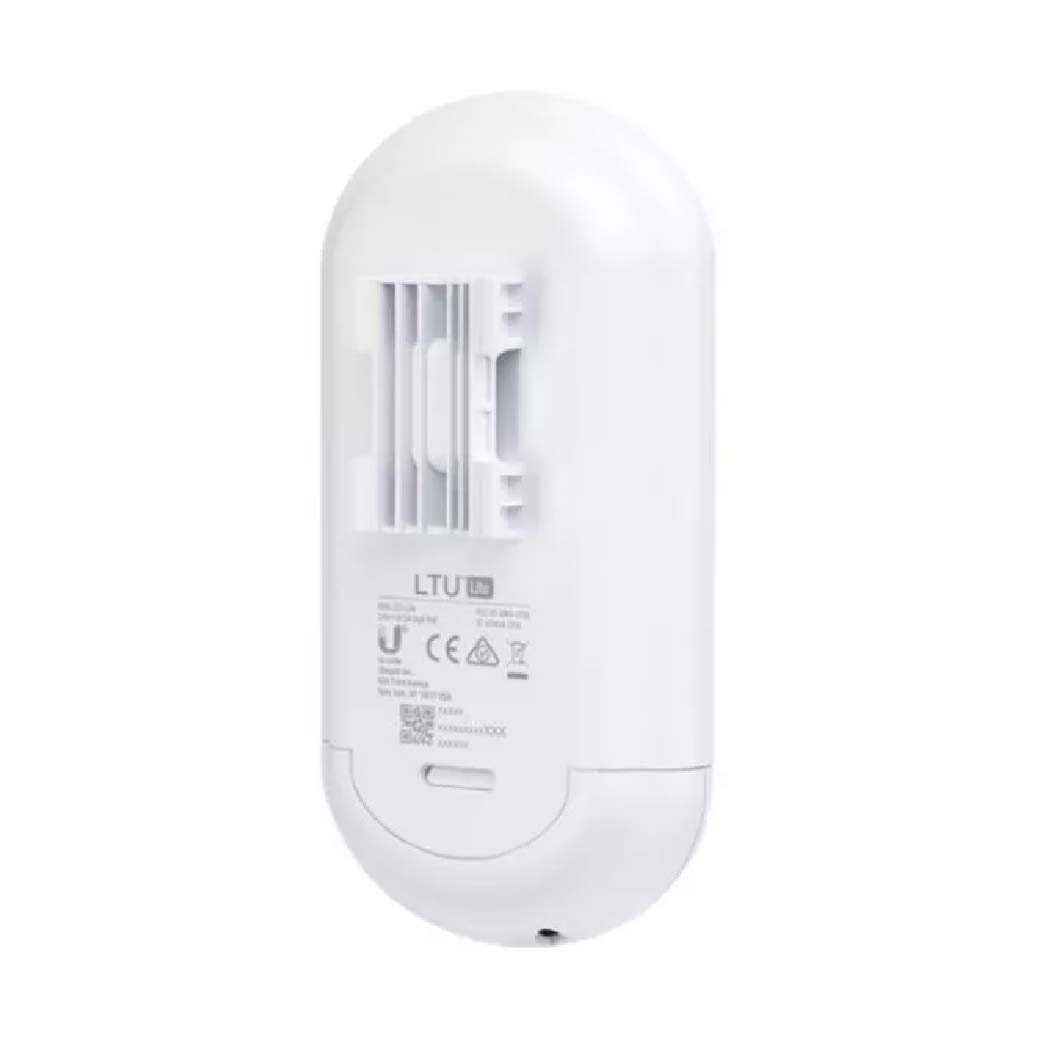

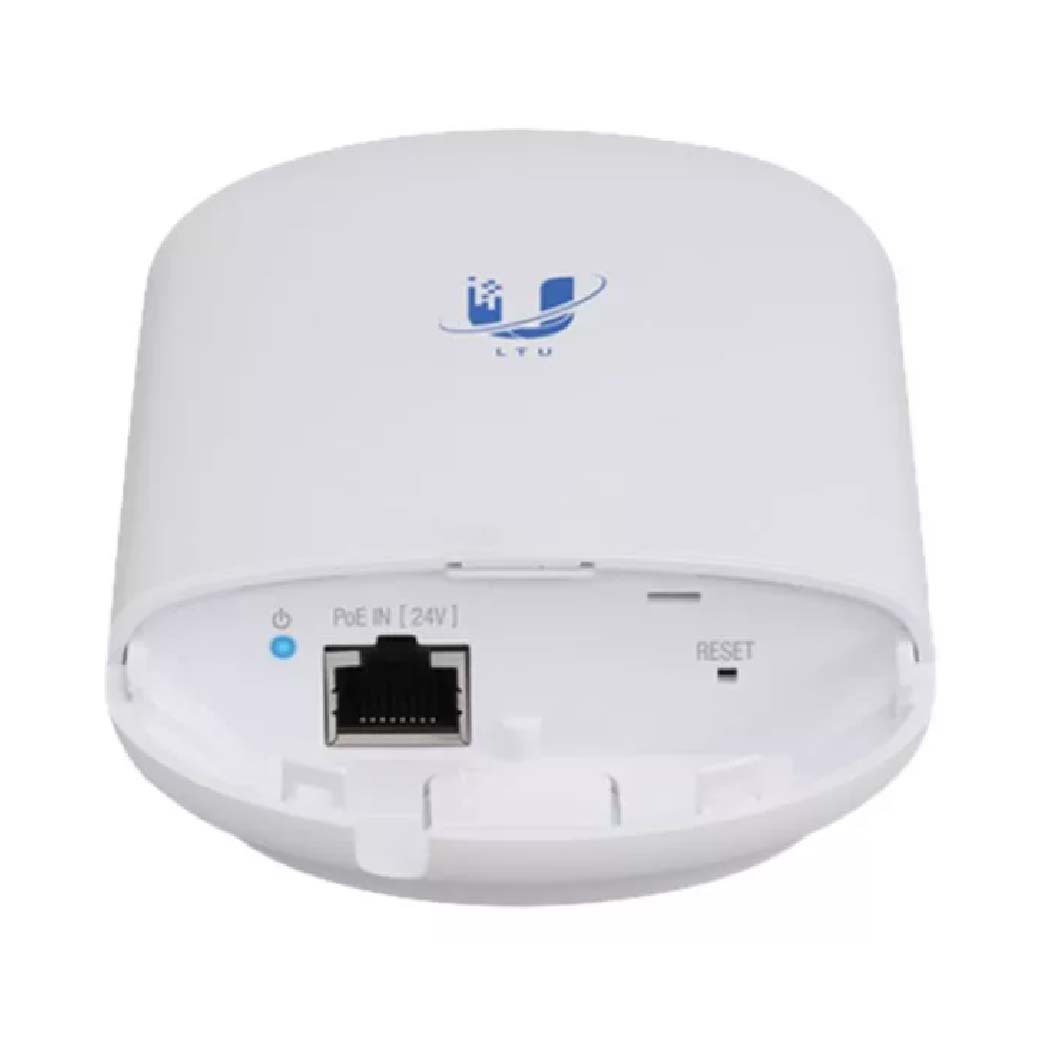

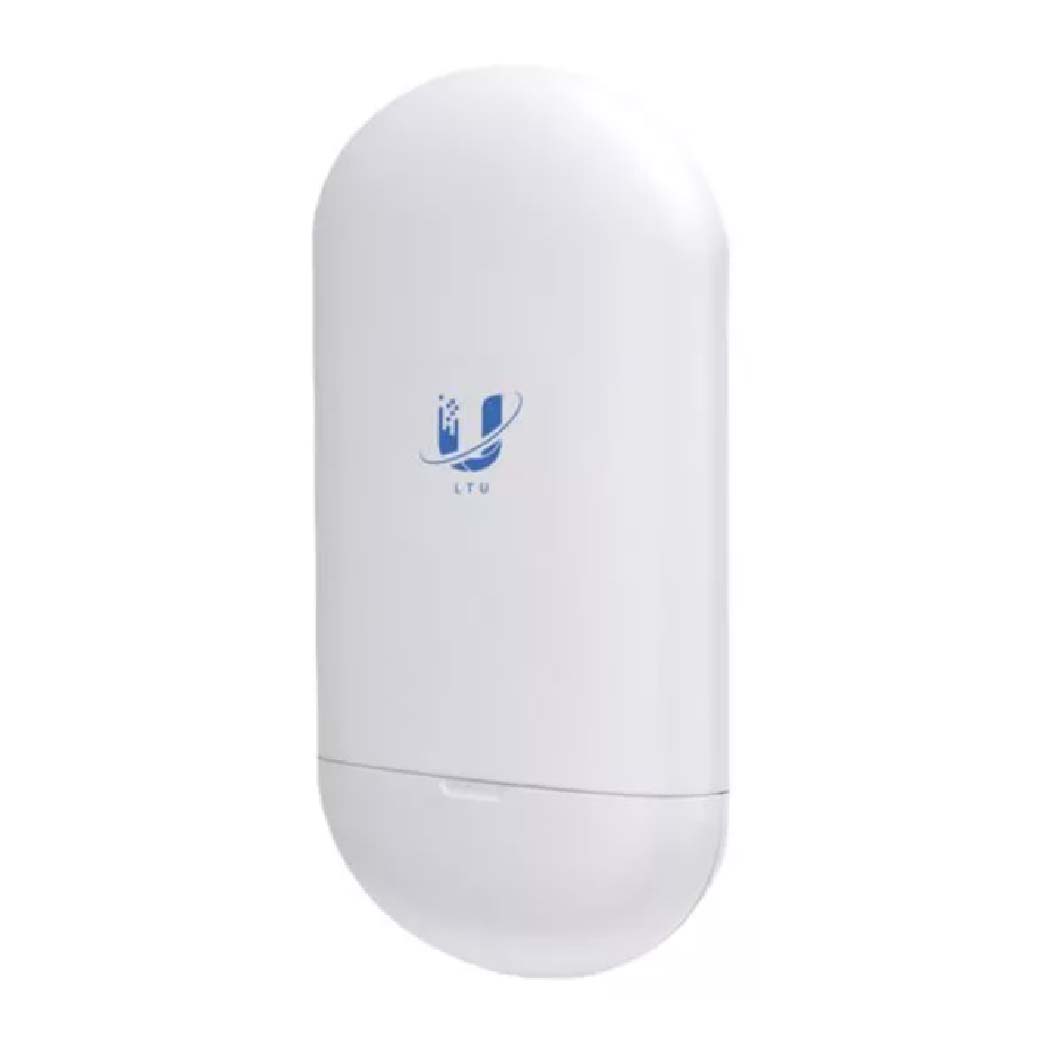

Ubiquiti UISP LTU Lite 5GHz 13dBi CPE | LTU-LITE

Description

Ubiquiti’s LTU-LITE is a 5GHz, 13dBi integrated radio featuring proprietary LTU technology. This technology is not impeded by the limitations of standard 802.11 WiFi technology, supporting 1024QAM and offering Channel Width Flexibility (10/20/30/40/50/60/80/100 MHz). Its custom LTU silicon and radio architecture provide up to 900+ Mbps of real TCP/IP throughput. It can be managed via the UISP network management platform.

*Note: PtP mode requires firmware versions 1.5.1 or later. For maximum throughput firmware version 2.3.0 or later is required.

FEATURES

• Antenna Gain: 13dBi
• Beam-width: 45°
• Data Rate: Up to 550Mbps
• Ethernet Ports: 1x 10/100/1000
• Hardware Button: Reset
• Max. Power Consumption: 8.5W
• Mounting: Pole-Mount & Wall-Mount
• Operating System: airOS
• Operating Temperature: -40°C to 55°C
• PoE Input: 24V Passive PoE
• PoE Output: None
• Power Input: 24V 0.5A Gigabit PoE Injector (Included)
• Serial Interface: None
• SIM Slots: None
• Supported Voltage Range: 22V-26V
• USB Ports: None
• Dimensions: 153 x 84 x 39.5mm
• Weight: 250g
