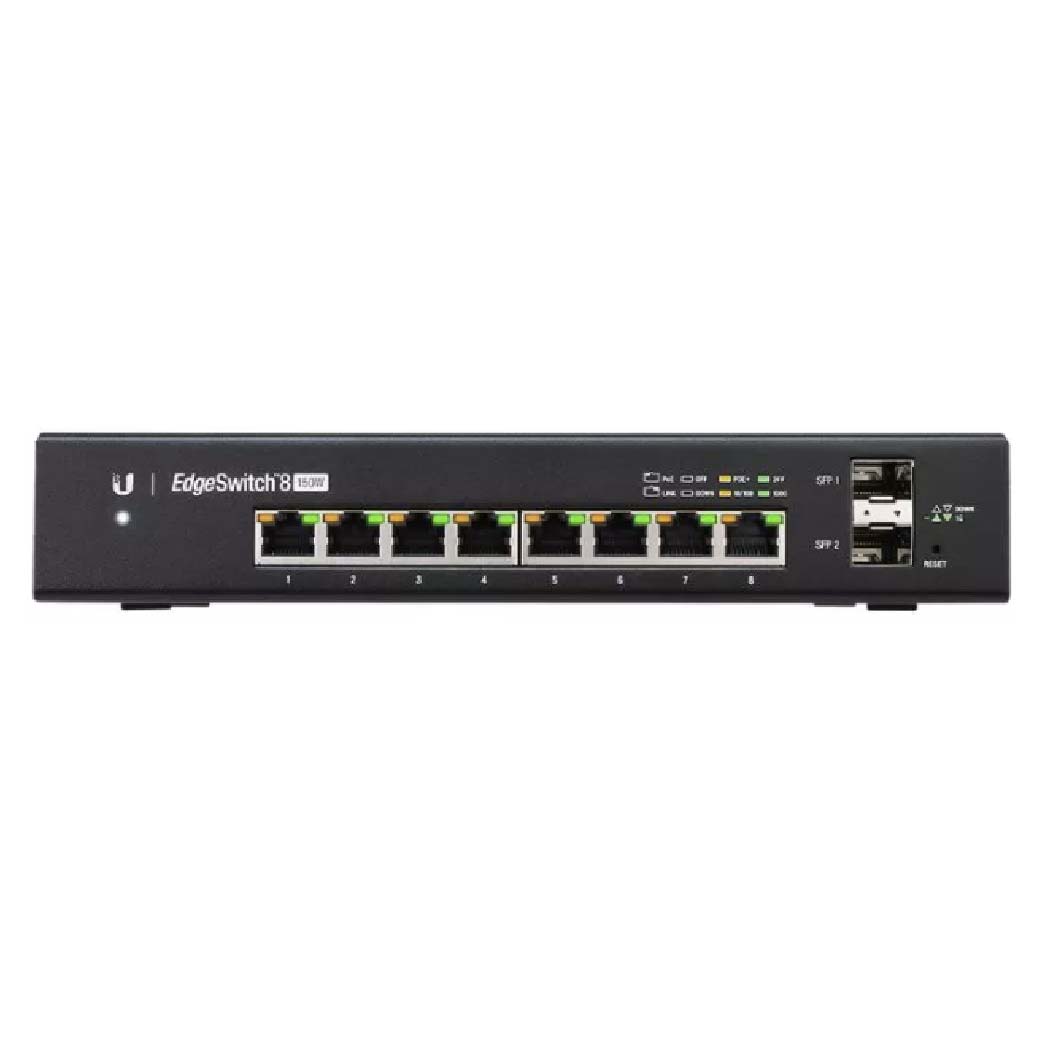

Ubiquiti UISP EdgeSwitch 8 Port PoE 150W 2SFP | ES-8-150W

Description

Ubiquiti’s ES8-150 is a managed 8 port Gigabit PoE switch with SFP connectivity. It features 802.3af/at PoE as well as passive 24v PoE on all Ethernet ports with a maximum budget of 130W. L2/L3 functionality makes them suitable for a wide range of high performance applications. It can be managed via the UISP network management platform.

FEATURES

• Ethernet Ports: 8x 10/100/1000
• Hardware Button: Reset
• Max. Power Consumption: 20W
• Mounting: Desktop
• Operating System: EdgeMAX
• Operating Temperature
• PoE Input: None
• PoE Output: 802.3af/at or 24V Passive PoE on Ports 1~8
• Power Input: 1x IEC Power Cord (Included) Or 42V to 56V DC input
• with Terminal Block
• Serial Interface: 1x RJ45 Ethernet In/Out Band
• SFP Ports: 2x 1.25Gbps
• Supported Voltage Range: 100V-240V
• Dimensions: 204 x 43 x 235mm
• Weight: 1.8Kg
