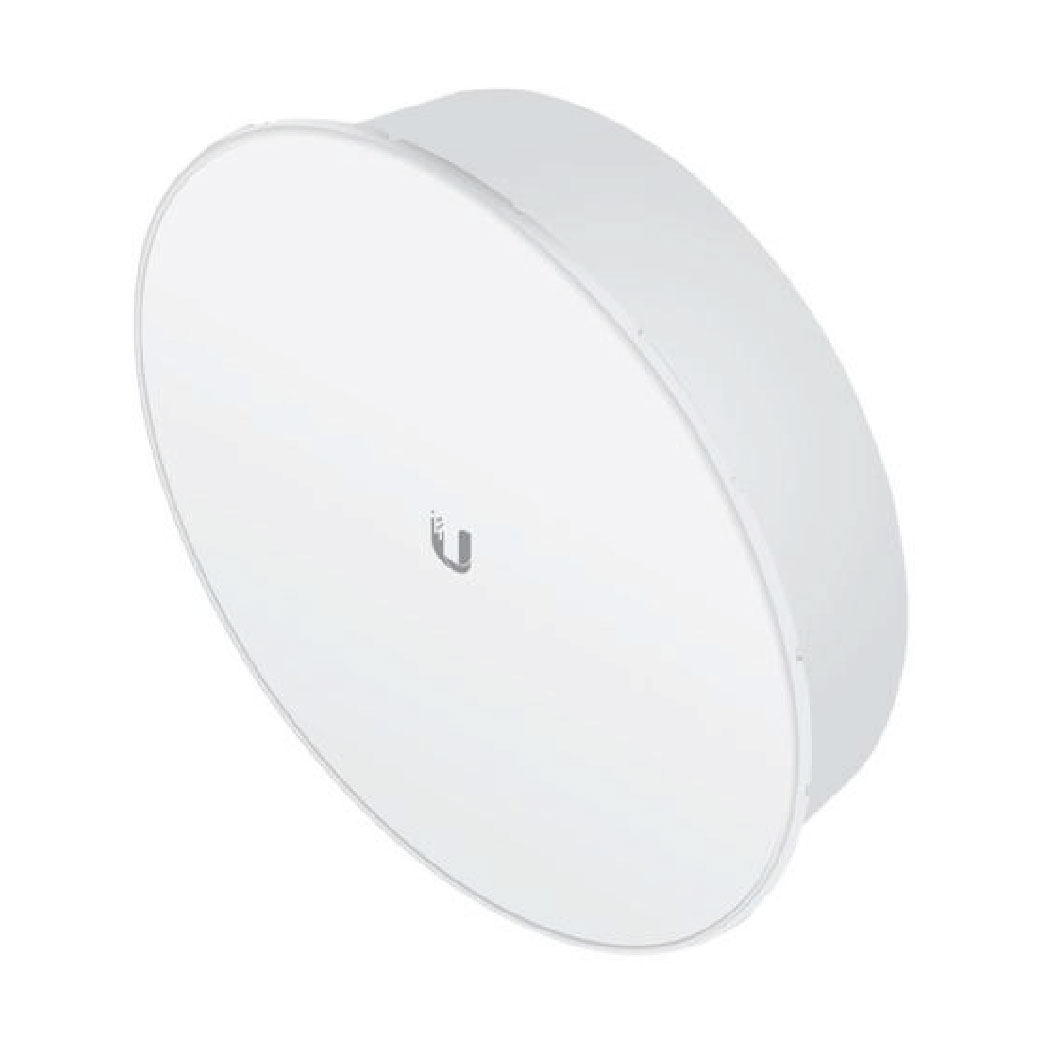

Ubiquiti UISP airMAX PowerBeam AC 5GHz 25dBi Isolator Radio | PBE-5AC-ISO-Gen2

Ubiquiti’s PBE-525ACISO is an airMAX AC 5GHz radio with a 25dBi antenna. The dish reflector provides the best antenna performance due to its high directivity and interference rejection characteristics. The isolator/radome cover provides better antenna shielding and protects it in harsh environments. It is designed as a high-performance, long-distance CPE (client premises equipment) or PtP (point-to-point) solution. The dedicated 2.4GHz management radio allows for easy set-up via the UISP mobile app and network management platform.

SPECIFICATIONS

• Antenna Gain: 25dBi
• Beam-width: 12°
• Data Rate: 867Mbps
• Ethernet Ports: 1x 10/100/1000
• Hardware Button: Reset
• Max. Power Consumption: 8.5W
• Mounting: Pole-Mount
• Operating System: airOS
• Operating Temperature: -40°C to 70°C
• PoE Input: 24V Passive PoE
• PoE Output: None
• Power Input: 24V 0.5A Gigabit PoE Injector (Included)
• Serial Interface: None
• SIM Slots: None
• Supported Voltage Range: 20V-26V
• USB Ports: None

DATASHEET
