Ubiquiti UISP airCube AC WiFi Access Point | ACB-AC

Description

Ubiquiti’s ACB-AC is a dual band, WiFi 5 Router/Access Point. It features 24V PoE pass-through to easily integrate with airMAX® CPEs. It is designed to work with the UISP network management platform.

FEATURES

• Antenna Gain: 2.4GHz 4dBi ; 5.8GHz 5dBi
• Beam-width: 360°
• Data Rate: 2.4GHz 300 Mbps ; 5.8GHz 866.7Mbps

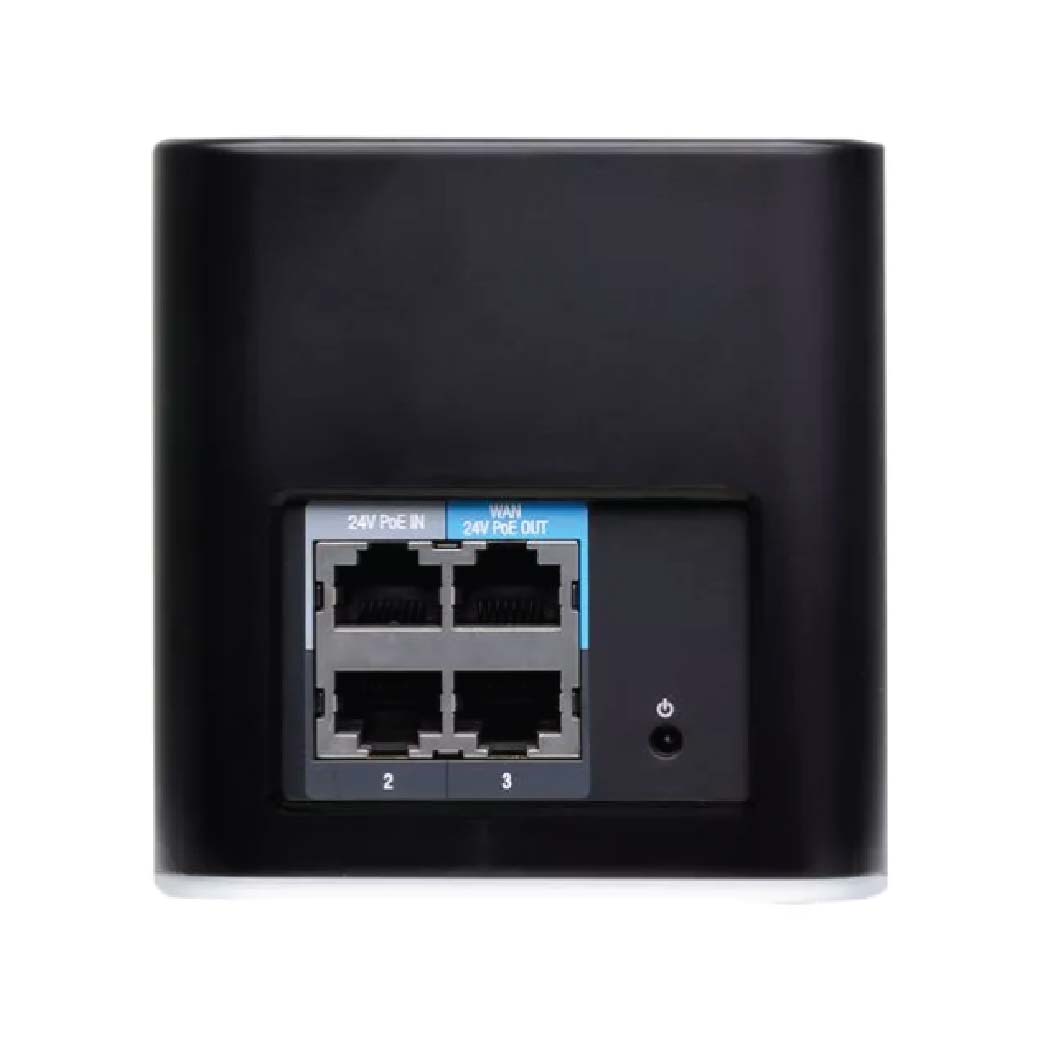

• Ethernet Ports: 4x 10/100/1000
• Hardware Button: Reset
• Max. Power Consumption: 8.5W
• Mounting: Desktop
• Operating System: airOS
• Operating Temperature: -10°C to 50°C
• PoE Input: 24V Passive PoE on Port 1
• PoE Output: 24V Passive PoE Pass-Through on Port 4

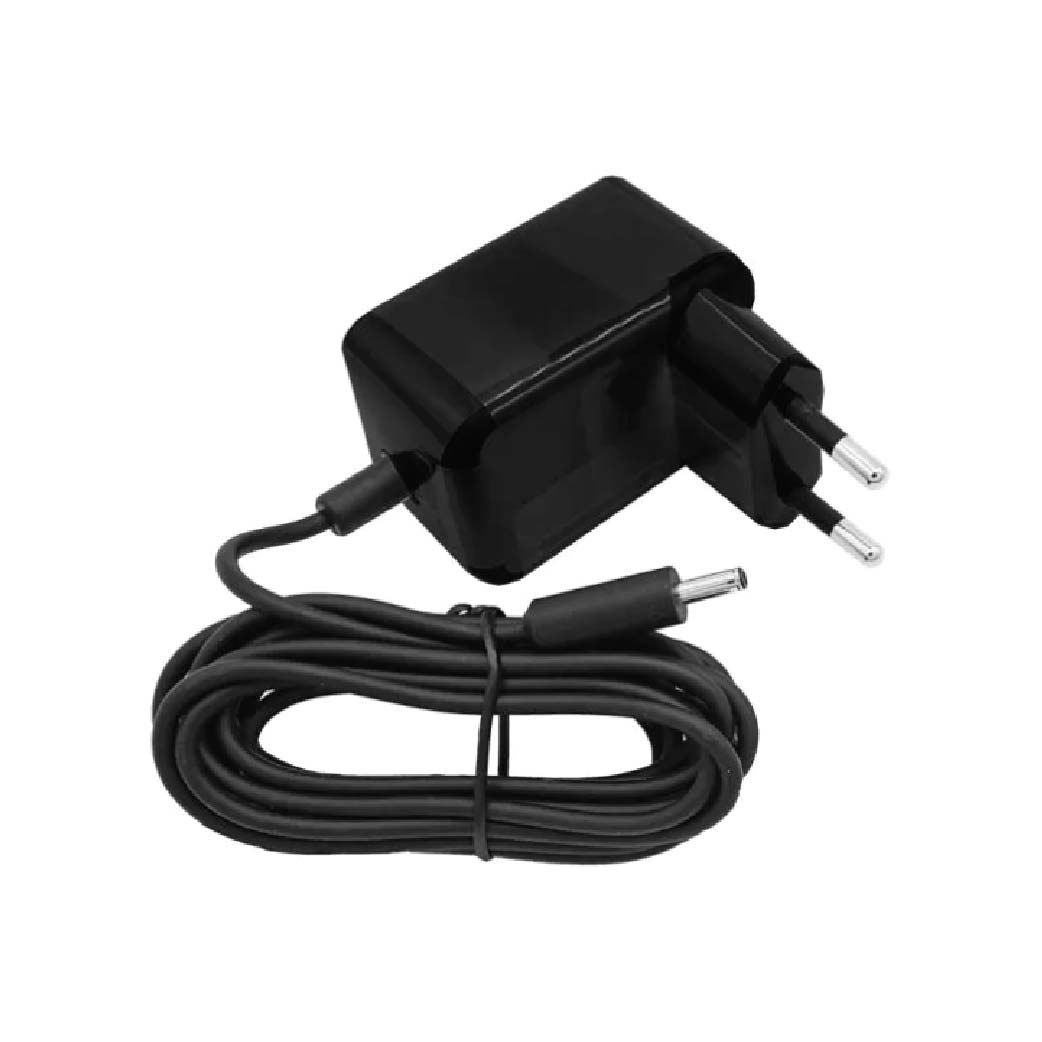

• Power Input: 24V; 0.83A Power Supply (Included)
• Serial Interface: None
• SFP Ports: None
• Supported Voltage Range: 22-26V
• USB Ports: None
• Dimensions: 87.80 x 89.50 x 89.25 mm
• Weight: 280 g
