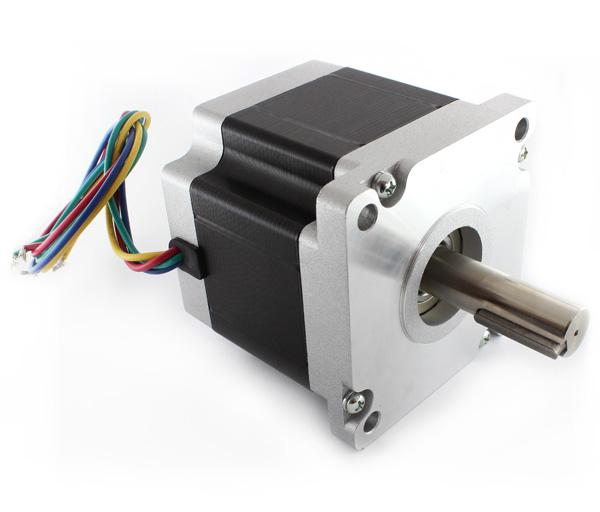

Nema 42 Stepper Motors – 99mm – 11.2Nm
R1,950.00
In stock
A stepper motor or step motor or stepping motor is a brushless DC electric motor that divides a full rotation into a number of equal steps. The motor’s position can then be commanded to move and hold at one of these steps without any position sensor for feedback (an open-loop controller), as long as the motor is carefully sized to the application in respect to torque and speed.
|
Model |
Step Angle | Motor Length | Current
/Phase |
Resistance
/Phase |
Inductance
/Phase |
Holding Torque | Lead
wires |
Detent Torque | Rotor Inertia | Motor
Weight |
| (( °) | (L)mm | A | Ω | mH | N.m | No. | kg.cm | g.cm | Kg | |
| 110HS99-5504 | 1.8 | 99 | 5.5 | 0.9 | 12 | 11.2 | 4 | 3 | 5500 | 5 |
| 110HS150-6504 | 1.8 | 150 | 6.5 | 0.8 | 15 | 21 | 4 | 5.9 | 10900 | 8.4 |
| 110HS201-8004 | 1.8 | 201 | 8 | 0.67 | 12 | 28 | 4 | 7.5 | 16200 | 11.7 |
(E&OE)
| Weight | 5 kg |
|---|---|
| Size | 99mm – 11.2Nm, 150mm – 21Nm, 201mm – 28Nm |
