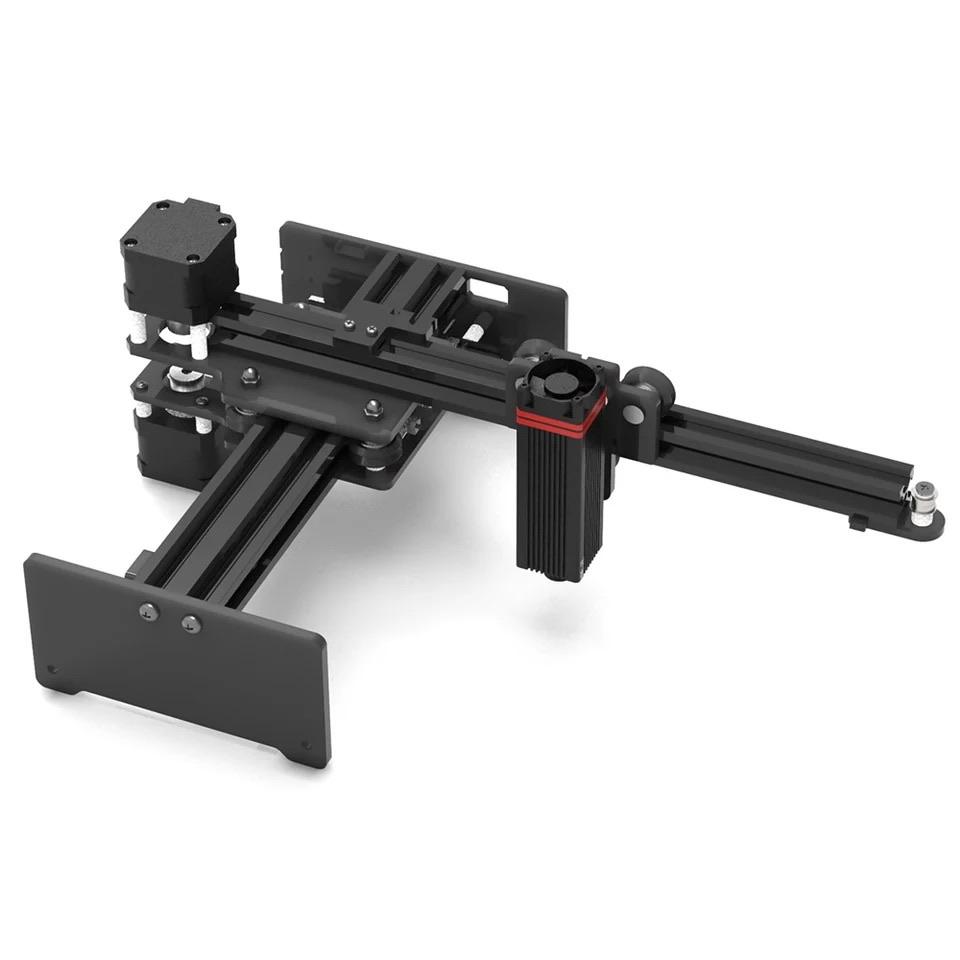

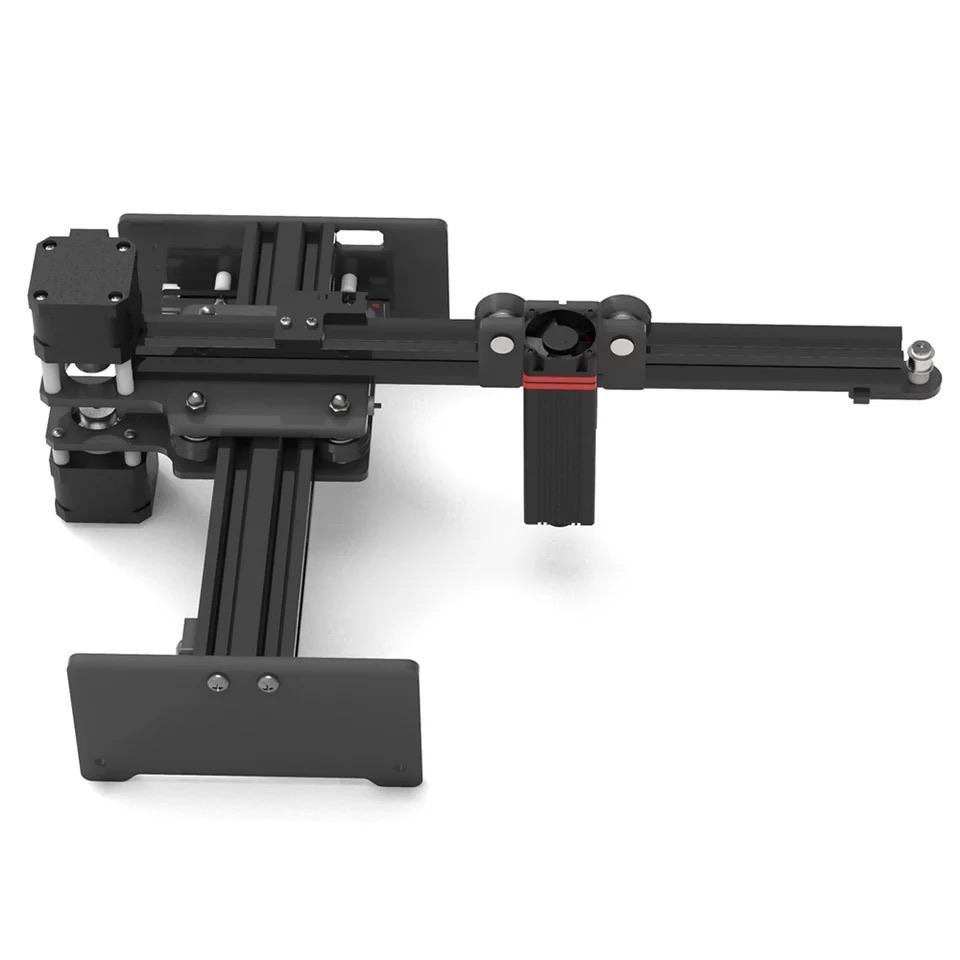

20W CNC Laser Engraving Machine

This product is an imported item.
Due to the uncertainty of shipping costs only domestic shipping costs are charged.
INTERNATIONAL SHIPPING IS NOT INCLUDED.

Please Email for Official Quote.

Master engraving machine is a portable engraving machine with simple installation, safety and easy operation. It has built-in sensor accelerometer. When the machine tilts, it will automatically stop laser work and protect from laser damage. At the same time, it supports NEJE control software and GRBL software, which can not only enjoy the simple portability of NEJE software, but also support the operation fun of GRBL open source software; it supports the dynamic control laser module developed by Neje, which can support PWM power regulation, low light brightness regulation, laser temperature induction protection; it also supports different power lasers. The master 3500 is especially good at gray-scale engraving. The Master 20W excels in fast cutting and can cut materials from 3mm to 5mm thickness.

Application:

Cuts Paper, Wood (<5mm).
Depth of engraving <3mm. Supported engraving materials: Wood, gray paper, leather, bamboo, blackening plastics, rubber, alumina oxide, etc. It is not possible to directly engrave the metal with strong mirror finish, which may cause injury to the operator or burn the laser.

Specifications:

Software: NEJE Controller / GRBL Controller
Material: Acrylic PP Aluminum
Laser Power: 20W ( Laser input:12v2A )
Laser Wave Length: 450nm
Focal length range:50-60mm,suitable for cutting
Focus point diameter: about 0.1mm
Image Format:.nc .dxf .bmp .jpg .png etc..
Image Size:2000 x 2000 pixels / 0.075mm point distance
Support System: Win7 / Win8 / XP / Win10 ， android APP(neje scanner)
Machine Supply Voltage: 12V3A

Items can be carved including: alumina oxide, mahogany, bamboo, paper cards, ivory, leather, flammable plastic, PCBA, etc.

NOTE: Custom duties may apply.
7-35 Working Days Delivery
(E&OE)
